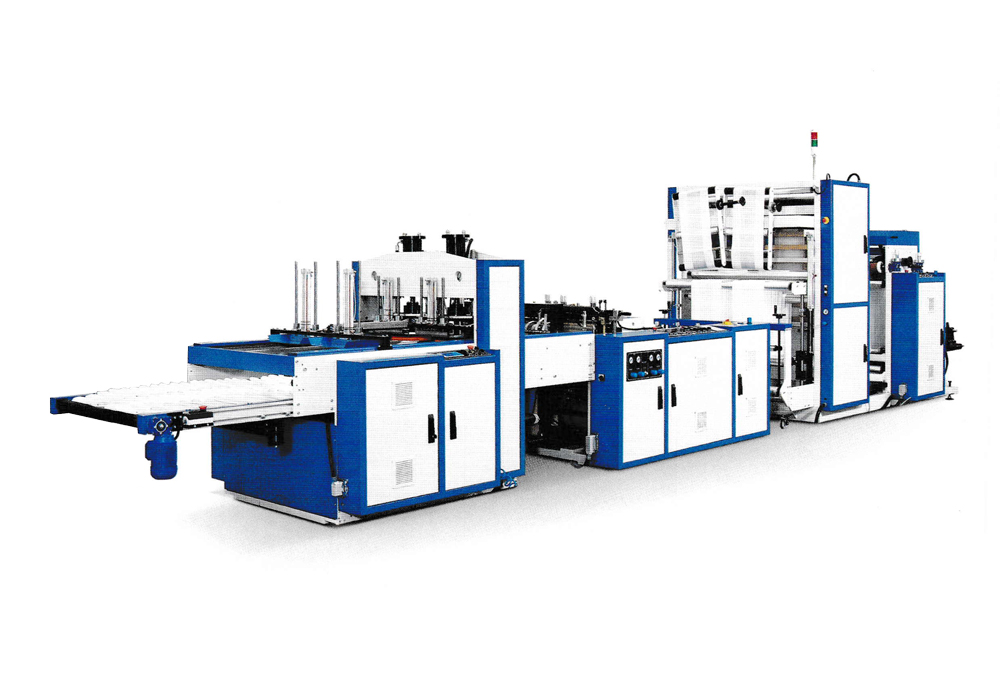

DOUBLE LINES T-SHIRT BAG MAKING MACHINES WITH SPLIT-SEAL & POST GUSSET

HS-8OO P | HS-1050 P | HS-8OO P | HS-1O5O P

Single Hot Knife Slitting System, Double Lines Post Gusset System.
Servo Motor and lnvertor Control System.
Bag Length, Set Number Can be Changed Via Screen. Bag Counting, Machine Speed Can be Seen on the Screen.
There is One Photocell. Ability to Produce Printed Bags and None-Printed Bags.
Ability to Work With HDPE, LDPE and Recycled PE Materials.
The Machine Would Stop and Give lnformation on the Screen When
- Roll is Empty,
- The Print Mark is Not in Right Position,
- The Bags are Jammed on the Welding Area.
The Sack Packages are arranged in a Bow on the Conveyor. The Conveyor is included to Machine as Standard.
All Bags are Stacked on Hot and Cold Pins Those are Located 1O cm lnside From the Handle Side of the Bag.
Thanks to Rocking Unit, the Welding Lines are Not Superimposed on the Other Bag’s Welding Line.
The Full Automatic Hydraulic Press Unit Those are Controlled By Screen and PLC.
