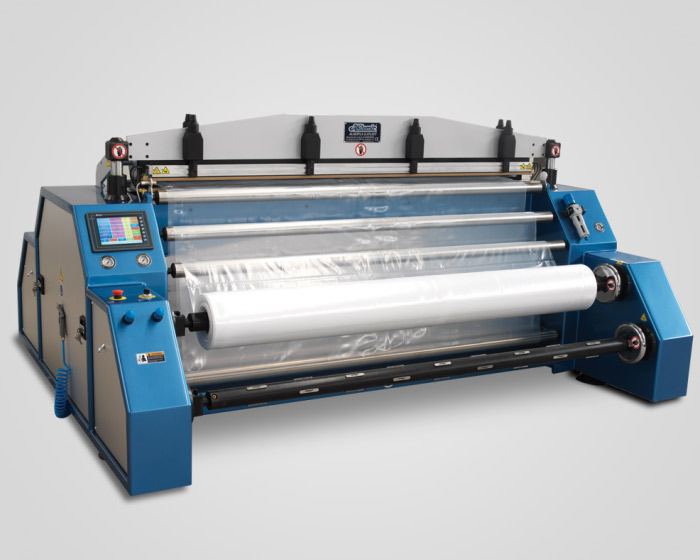

AK 1300

This machine suitable for automatically making LDPE/HDPE heavy duty bags from roll to roll
Thickness of the film can be welded: Minimum 60 microns(2×30-Tubular form), Maximum 1000microns(2×500-Tubular form or
4×250-Gusseted tubing form)
The length of the film can be processed: Minimum 200mm(20cm), Maximum 99999mm(100mt.)
PLC controlled operation control panel
TFT screen with touchpad
Single unwinder, Double winders
Holders of bobbin with pneumatic shaft
Three independent rezistance wires(heater) can use independently for making a weld and controlled by digital impulse control system
1. heater – 2. heater – 3. heater – 1. and 2. heaters – 1. and 3. heaters – 2. and 3. heaters
Only Perforation is possible without welding
Only Transfering is possible without measurement
Maximum 600 mm diameter of bobbin can be loaded on unwinder shaft
Maximum 450 mm diameter of bobbin can be loaded on winder shafts
Maximum 300 kg. of bobbin can be loaded on unwinder and winder shafts
Diameter(outside) of shaft(winder/unwinder); 70mm ” it is for 76mm (inner diameter) of carton bobbin”
A.C. motor speed control drivers
Output digital counter (mm measurement)
Alarm for resistance wire breake
Emergency auto-stop system with reflective photocell
Optionally; color photocell can be affixed for printed products.
Power Consumption; During working time it is between 1,0- 2,5kW
Total power;3P 380V+N+MP, 6.75kW, 50Hz
Total air supply; 6-8 bar
It is possible to produce one side open bag on two separate bobbin with cold slicing knife
Shaft safety chucks

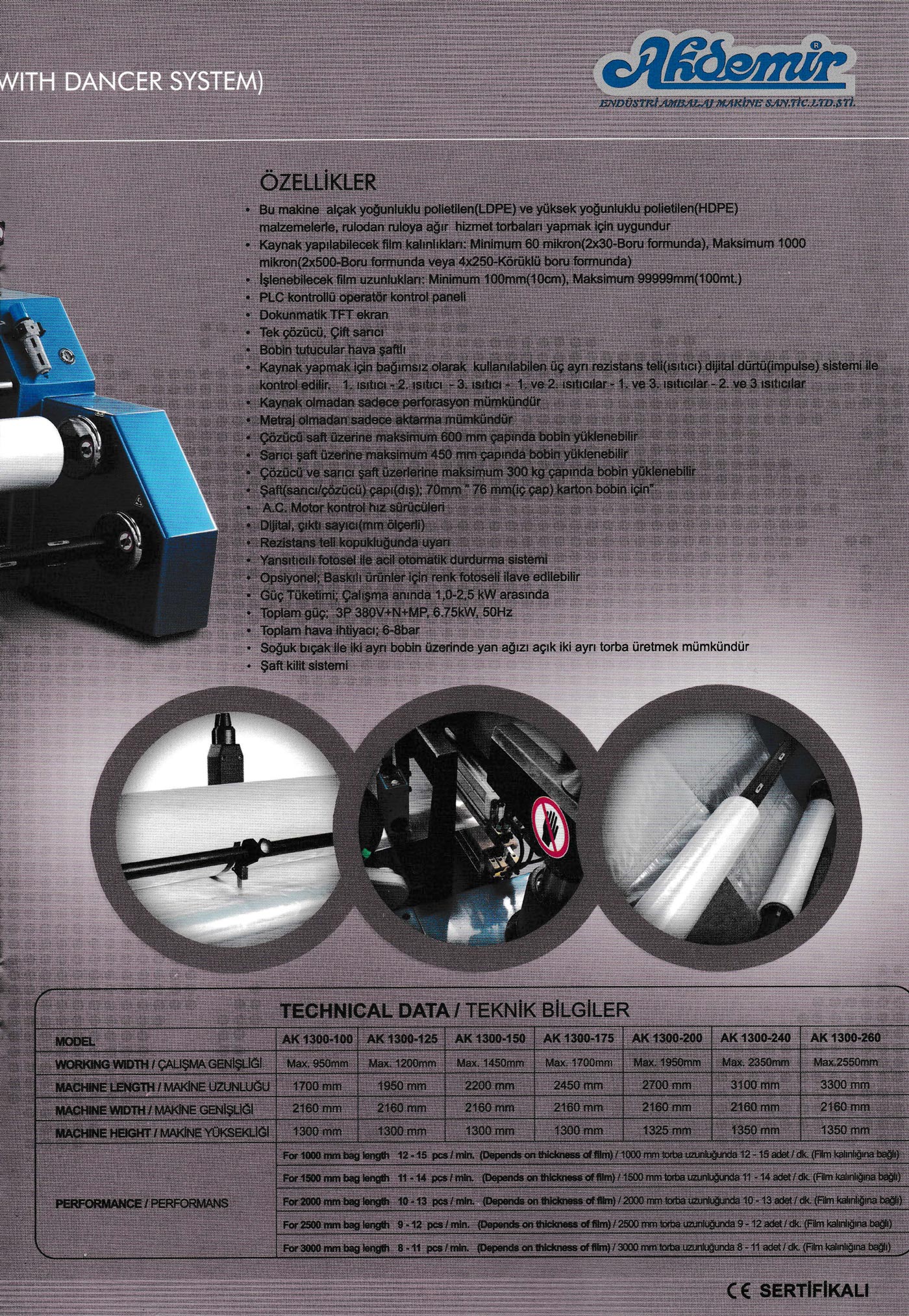

MODEL	AK 1300-100	AK 1300-125	AK 1300-150	AK 1300-175	AK 1300-200	AK 1300-240	AK 1300-260
Working Width	Max 950 mm	Max 1200 mm	Max 1450 mm	Max 1700 mm	Max 1950 mm	Max 2350 mm	Max 2550 mm
Machine Lenght	1700 mm	1950 mm	2200 mm	2450 mm	2700 mm	3100 mm	3300 mm
Machine Width	2160 mm	2160 mm	2160 mm	2160 mm	2160 mm	2160 mm	2160 mm
Machine Height	1300 mm	1300 mm	1300 mm	1300 mm	1325 mm	1350 mm	1350 m
Performance	For 1000 mm bag length 12 – 15 pcs/min (depends of thickness of film)
	For 1500 mm bag length 11 – 14 pcs/min (depends of thickness of film)
	For 2000 mm bag length 10 – 13 pcs/min (depends of thickness of film)
	For 2500 mm bag length 9 – 12 pcs/min (depends of thickness of film)
	For 3000 mm bag length 8 – 11 pcs/min (depends of thickness of film)
